    G-Series Analog Output Modules

    Voltage and current output types are available with 4, 8 and 16 channels.
    Resolution with both 12 and 16 Bits depending on type of module.
    Modules supporting output current 0~20 / 4~20mA and output voltage 0~10 / -10~10V.

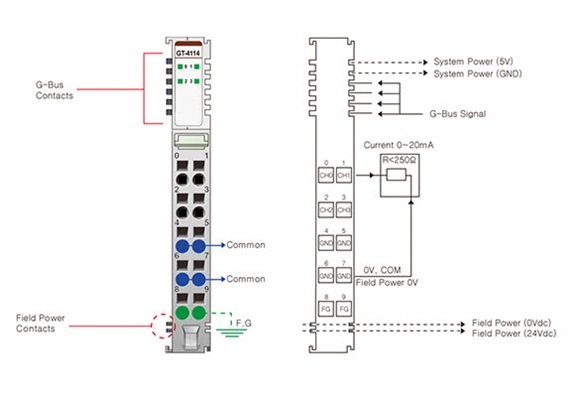

    g-series gt-4114

    GT-4114

    4 analog outputs

    • 0~20 mA
    • 12 bit resolution
    • Load Resistance: Max 250 Ω
    • 10pt removable terminal block
    g-series gt-4214

    GT-4214

    4 analog outputs

    • 4~20 mA
    • 12 bit resolution
    • Load Resistance: Max 250 Ω
    • 10pt removable terminal block
    g-series gt-4314

    GT-4314

    4 analog outputs

    • 4~20 mA
    • 12 bit resolution
    • Load resistance: Min. 250 Ω - Max. 550 Ω
    • 18pt removable terminal block

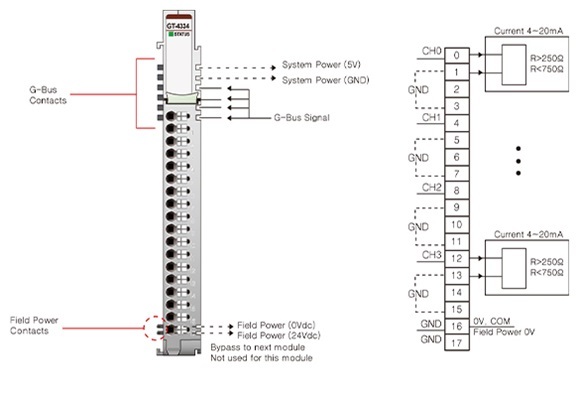

    g-series gt-4334

    GT-4334

    4 analog outputs

    • 4~20 mA
    • 12 bit resolution
    • Load resistance: Min. 550 Ω - Max. 750 Ω
    • 18pt removable terminal block

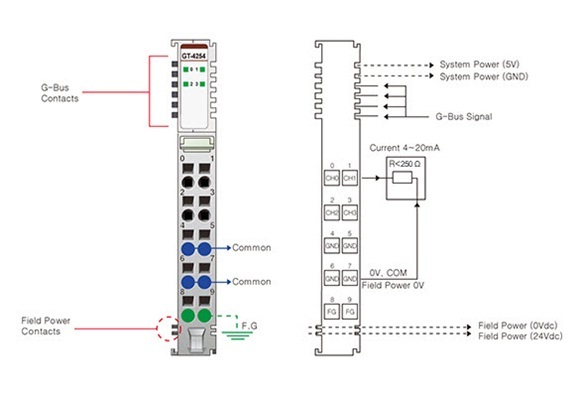

    g-series gt-4254

    GT-4254

    4 analog outputs

    • 4~20 mA
    • 16 bit resolution
    • Load Resistance: Max 250 Ω
    • 10pt removable terminal block

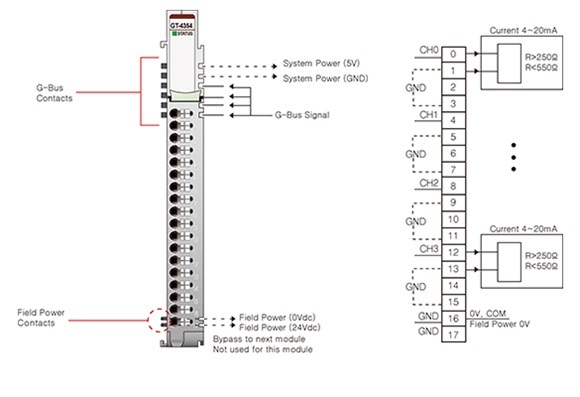

    g-series gt-4354

    GT-4354

    4 analog outputs

    • 4~20 mA
    • 16 bit resolution
    • Load resistance: Min. 250 Ω - Max. 550 Ω
    • 18pt removable terminal block

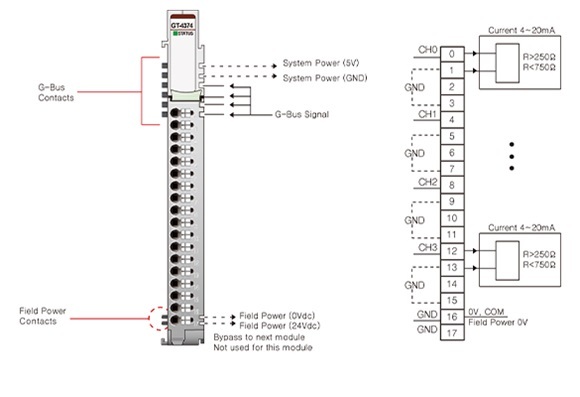

    g-series gt-4374

    GT-4374

    4 analog outputs

    • 4~20 mA
    • 16 bit resolution
    • Load resistance: Min. 550 Ω - Max. 750 Ω
    • 18pt removable terminal block

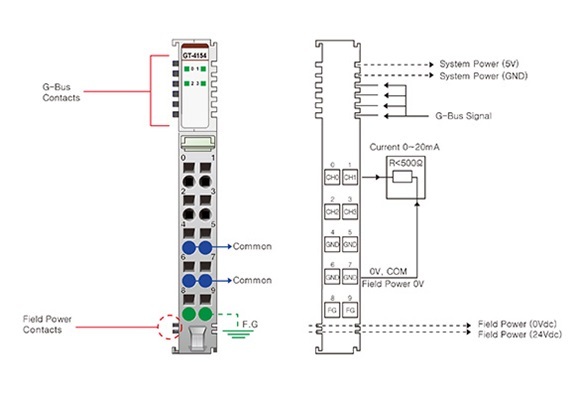

    g-series gt-4154

    GT-4154

    4 analog outputs

    • 0~20 mA
    • 16 bit resolution
    • Load Resistance: Max 250 Ω
    • 10pt removable terminal block
    g-series gt-4424

    GT-4424

    4 analog outputs

    • 0~10 V or 0~5 V
    • 12 bit resolution
    • Load Resistance: Min 2 kΩ
    • 10pt removable terminal block

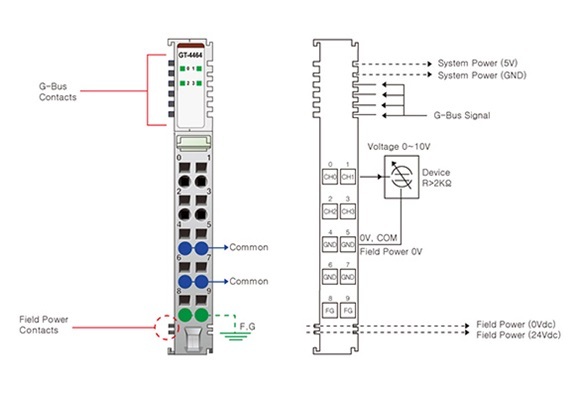

    g-series gt-4464

    GT-4464

    4 analog outputs

    • 0~10 V
    • 16 bit resolution
    • Load Resistance: Min 2 kΩ
    • 10pt removable terminal block
    g-series gt-4524

    GT-4524

    4 analog outputs

    • -10~10V
    • 12 bit resolution
    • Load Resistance: Min 4 kΩ
    • 10pt removable terminal block
    g-series gt-4564

    GT-4564

    4 analog outputs

    • -10~10V
    • 16 bit resolution
    • Load Resistance: Min 4 kΩ
    • 10pt removable terminal block

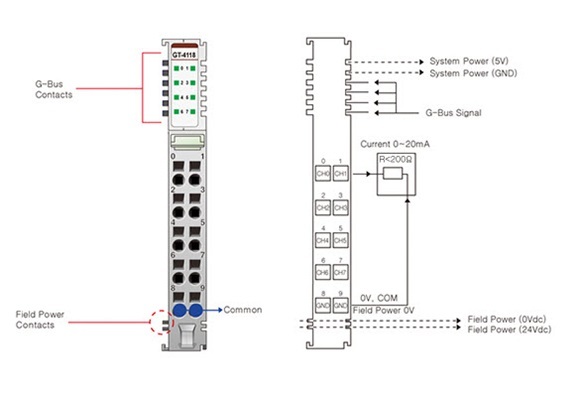

    g-series gt-4118

    GT-4118

    8 analog outputs

    • 0~20 mA
    • 12 bit resolution
    • Load Resistance: Max 200 Ω
    • 10pt removable terminal block

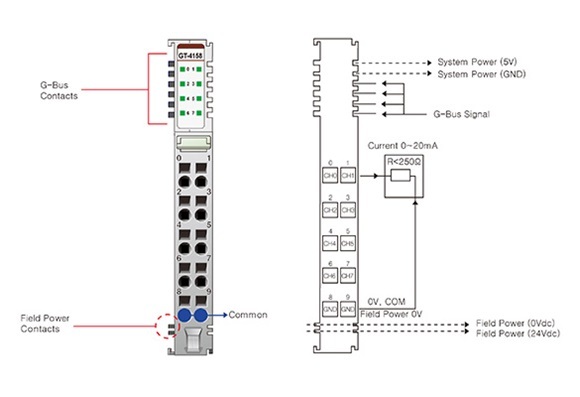

    g-series gt-4158

    GT-4158

    8 analog outputs

    • 0~20 mA
    • 16 bit resolution
    • Load Resistance: Max 200 Ω
    • 10pt removable terminal block
    g-series gt-4428

    GT-4428

    8 analog outputs

    • 0~10 V or 0~5 V
    • 12 bit resolution
    • Load Resistance: Min 2 kΩ
    • 10pt removable terminal block

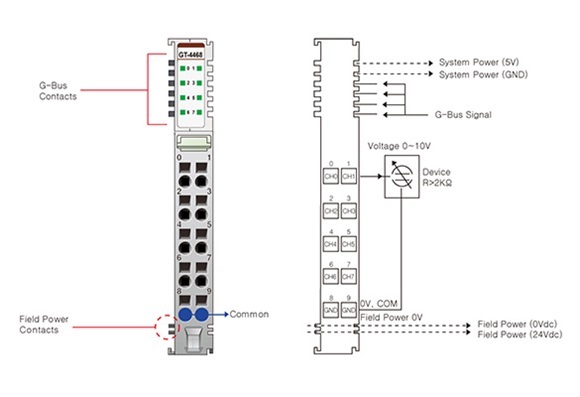

    g-series gt-4468

    GT-4468

    8 analog outputs

    • 0~10 V
    • 16 bit resolution
    • Load Resistance: Min 2 kΩ
    • 10pt removable terminal block
    g-series gt-4218

    GT-4218

    8 analog outputs

    • 4~20 mA
    • 12 bit resolution
    • Load Resistance: Max 200 Ω
    • 10pt removable terminal block
    g-series gt-4258

    GT-4258

    8 analog outputs

    • 4~20 mA
    • 16 bit resolution
    • Load Resistance: Max 200 Ω
    • 10pt removable terminal block

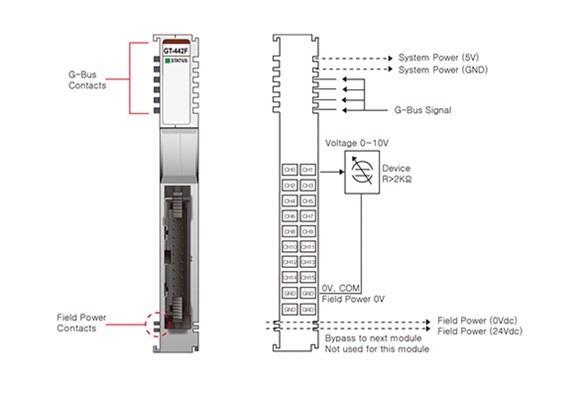

    g-series gt-442f

    GT-442F

    16 analog outputs

    • 0~10 V
    • 12 bit resolution
    • Load Resistance: Min 2 kΩ
    • 20-pin connector (cable not included)
    • Con20-Open-Cab 5m can be used in combination (part.no. 313296)

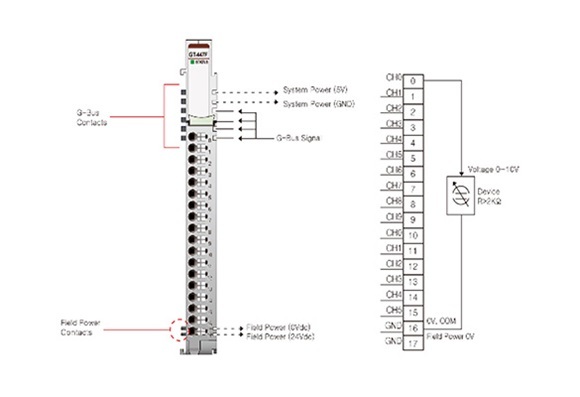

    g-series-gt447F

    GT-447F

    16 analog outputs

    • 0~10 V
    • 12 bit resolution
    • Load Resistance: Min 2 kΩ
    • 18pt removable terminal block

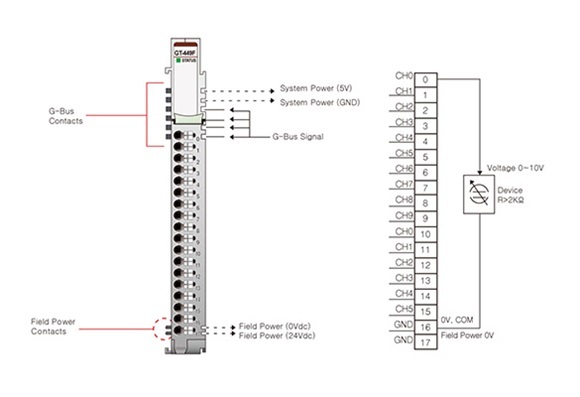

    g-series gt-449f

    GT-449F

    16 analog outputs

    • 0~10 V
    • 16 bit resolution
    • Load Resistance: Min 2 kΩ
    • 18pt removable terminal block
