    G-Series Digital Input Modules

     Connect to your process with 12VDC, 24VDC, 120VAC and 240VAC input modules.
    The digital input modules has from 4, 8, 16 to 32 input channels.

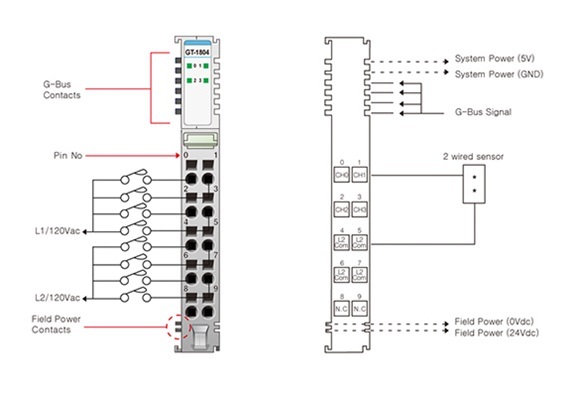

    g-series gt-1804

    GT-1804

    4-digital inputs

    • 120 VAC
    • 60Hz
    • 10pt removable terminal block

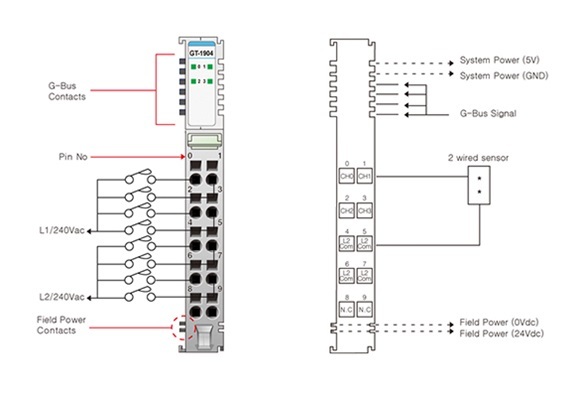

    g-series-gt-1904

    GT-1904

    4 digital inputs

    • 240 VAC
    • 60Hz
    • 10pt removable terminal block
    g-series GT-1238

    GT-1238

    8 digital inputs

    • 24 VDC
    • SINK/SOURCE
    • 10pt removable terminal block

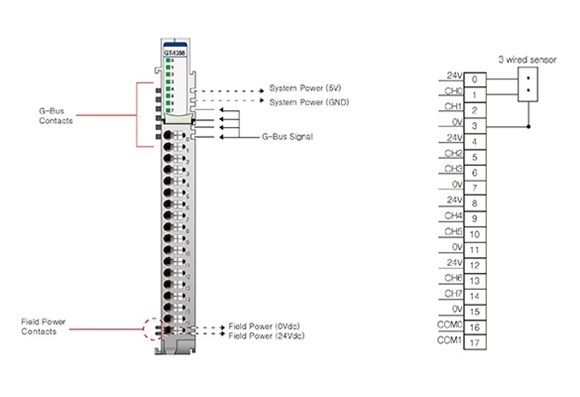

    g-series gt-1358

    GT-1358

    8 digital inputs

    • 24 VDC
    • SINK
    • 18pt removable terminal block

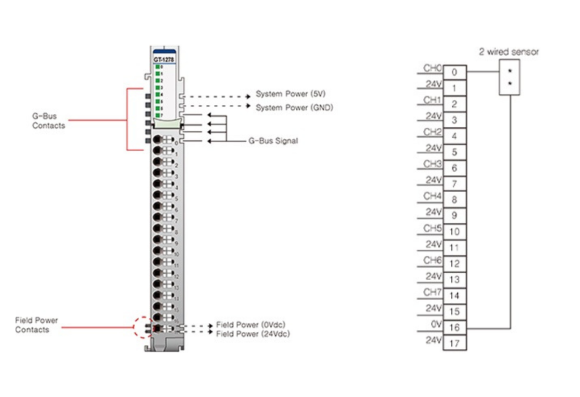

    g-series GT-1278 (1)

    GT-1278

    8 digital inputs

    • 24 VDC
    • SINK (Proximity sensor type)
    • 18pt removable terminal block

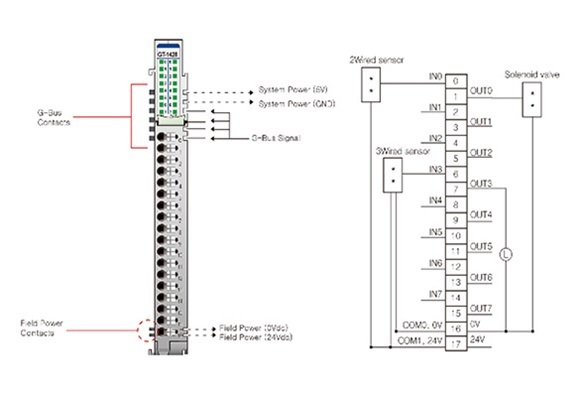

    g-series gt-1428

    GT-1428

    8 digital inputs/outputs

    • 24 VDC
    • IN SINK/OUT SOURCE
    • Diagnostics
    • 18pt removable terminal block

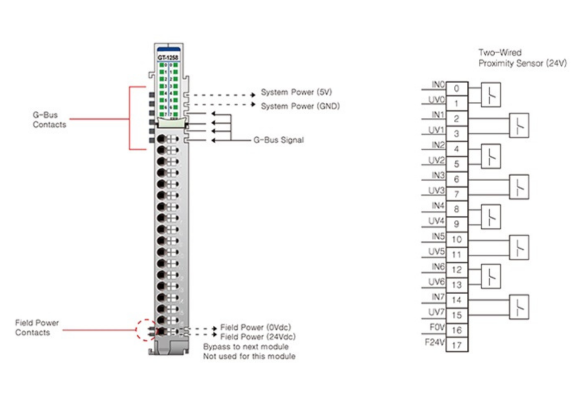

    g-series GT-1258

    GT-1258

    8 digital inputs

    • 24 VDC
    • Proximity sensor type
    • Sort-circuit protected
    • Detecting Open / Short / On-Off States
    • 18pt removable terminal block

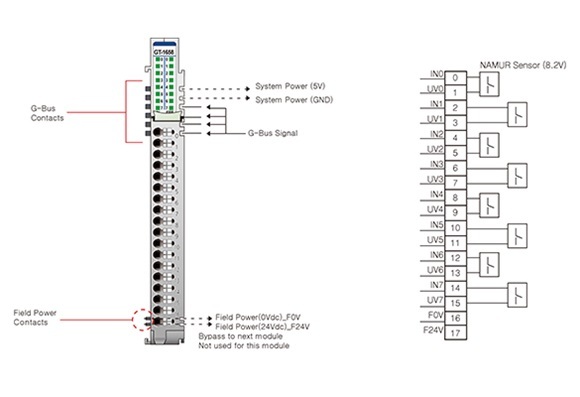

    g-series gt-1658

    GT-1658

    8 digital inputs

    • 8.2 VDC
    • Proximity sensor type
    • Short-circuit protected
    • Detecting Open / Short / On-Off States
    • 18pt removable terminal block

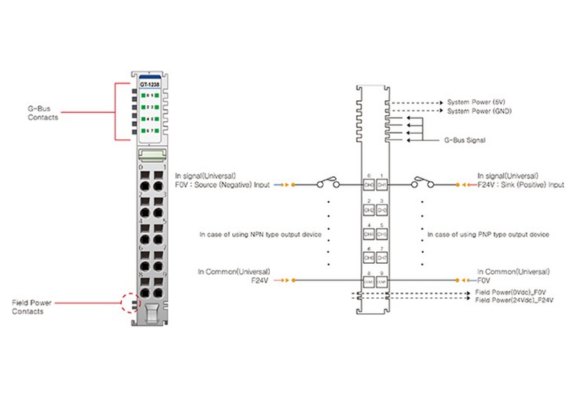

    g-series GT-12df (1)

    GT-12DF

    16 digital inputs

    • 24 VDC
    • SINK/SOURCE
    • 18pt removable terminal block

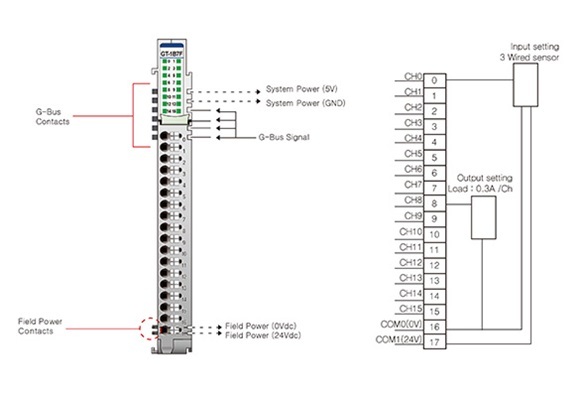

    g-series gt-1b7f

    GT-1B7F

    16 digital inputs/outputs

    • 24 VDC
    • IN SINK/OUT SOURCE
    • 18pt removable terminal block

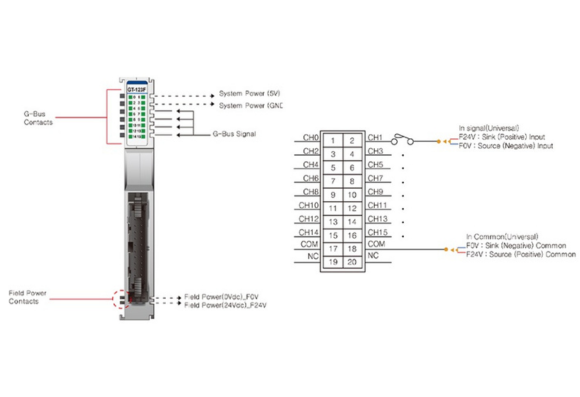

    g-series GT-123f

    GT-123F

    16 digital inputs

    • 24 VDC
    • SINK/SOURCE
    • 20-pin connector (cable not included)
    • Con20-Open-Cab 5m can be used in combination (part.no. 313296)

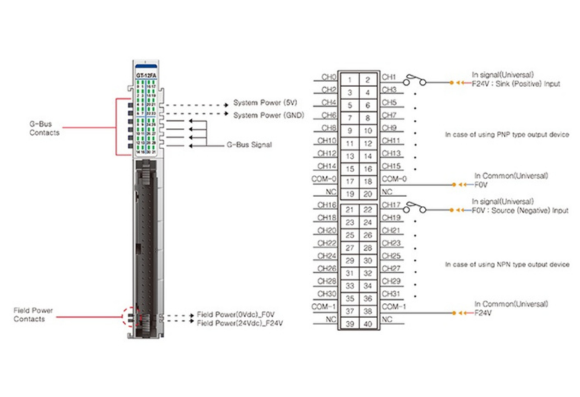

    g-series GT-12fa

    GT-12FA

    32 digital inputs

    • 24 VDC
    • SINK/SOURCE
    • 40-pin connector (cable not included)
