Distributed I/O
G-series
Digital output modules
G-Series Digital Output Modules
Connect to your process with
24VDC/0.3/0.5A/2.0A, 110VDC/VAC/1.0A and 240VDC/VAC/0.5A.
The digital output modules has from 4, 8, 16 to 32 output channels.

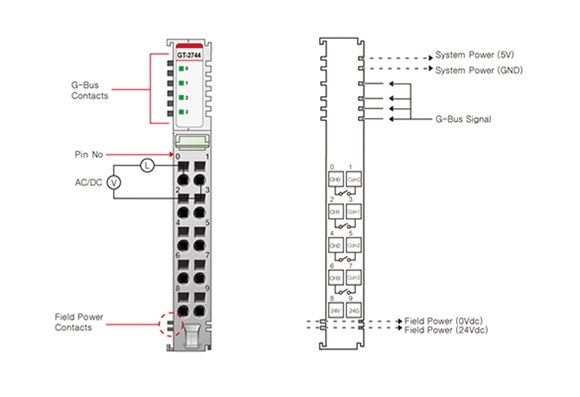

GT-2744
4 digital outputs
24/48/110 VDC, 240 VAC
Relay Normally open (NO), Form A, SPST
Max 2 A (load dependent)
10pt removable terminal block

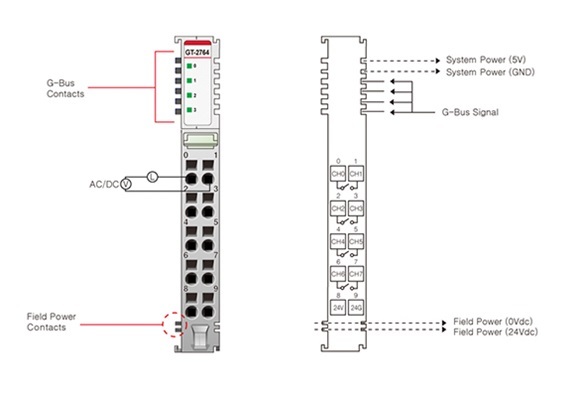

GT-2764
4 digital outputs
24 VDC / VAC
Solid state relay SSR
Max 2 A (load dependent)
10pt removable terminal block

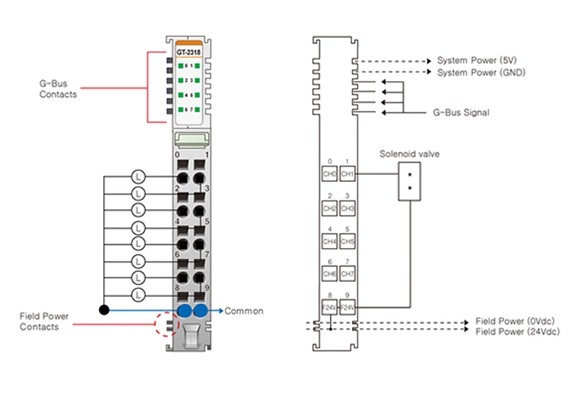

GT-2318
8 digital outputs
24 VDC / 0.5 A
Transistor SINK
Short circuit protection
Over current limit & Thermal shutdown
10pt removable terminal block

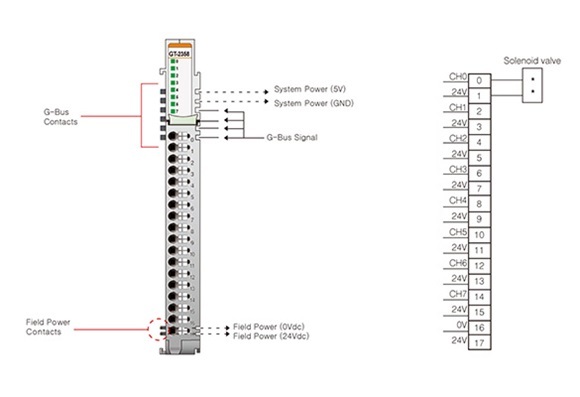

GT-2358
8 digital outputs
24 VDC / 0.5 A
Transistor SINK
For 2-wire actuators
Short circuit protection
Over current limit & Thermal shutdown
18pt removable terminal block
GT-2418
8 digital outputs
24 VDC / 0.5 A
Transistor SINK
Diagnostics
Short circuit protection
Over current limit & Thermal shutdown
18pt removable terminal block

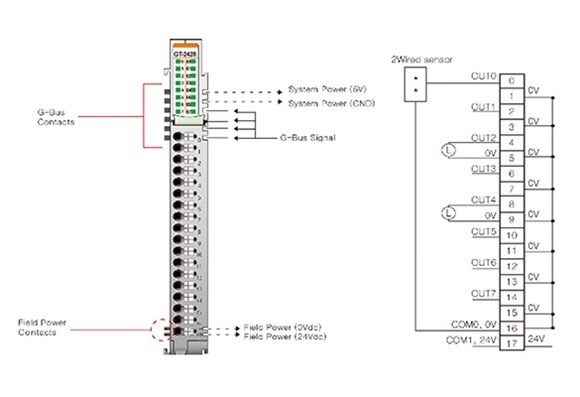

GT-2428
8 digital outputs
24 VDC / 0.5 A
Transistor SOURCE
Diagnostics
Short circuit protection
Over current limit & Thermal shutdown
18pt removable terminal block

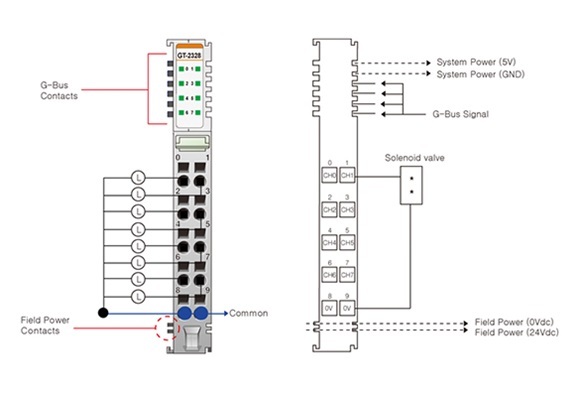

GT-2328
8 digital outputs
24 VDC / 0.5 A
Transistor SOURCE
Short circuit protection
Over current limit & Thermal shutdown
10pt removable terminal block

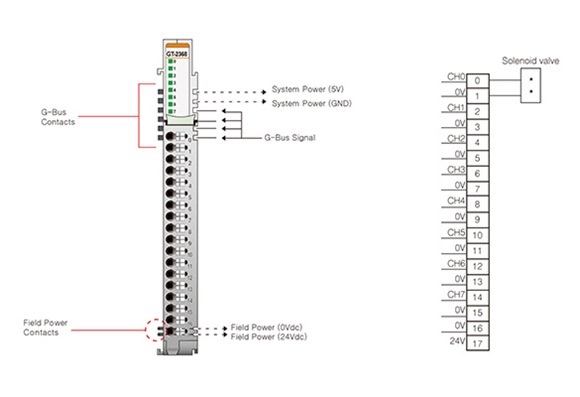

GT-2368
8 digital outputs
24 VDC / 0.5 A
Transistor SOURCE
For 2-wire actuators
18pt removable terminal block

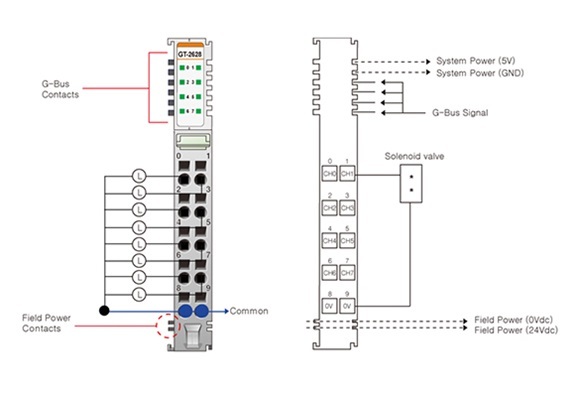

GT-2628
8 digital outputs
24 VDC, max. 2 A / channel
Transistor SOURCE
10pt removable terminal block
GT-2618
8 digital outputs
24 VDC, max. 2 A / channel
Transistor SINK
10pt removable terminal block

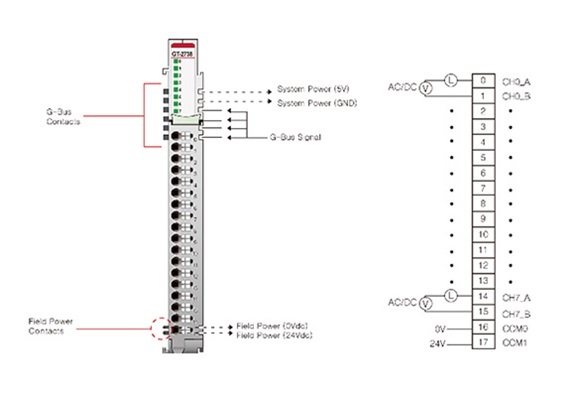

GT-2738
8 digital outputs
240 VDC / VAC (0.5 A)
Solid state relay SSR
18pt removable terminal block

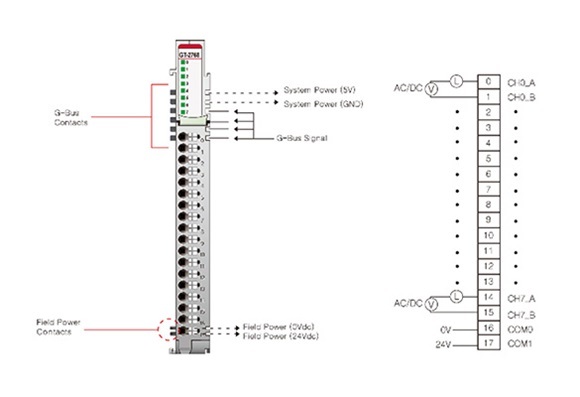

GT-2768
8 digital outputs
24 VDC / VAC (2 A)
Solid state relay SSR
10pt removable terminal block
GT-2788
8 digital outputs
110 VDC / VAC (1 A)
Solid state relay SSR
18pt removable terminal block

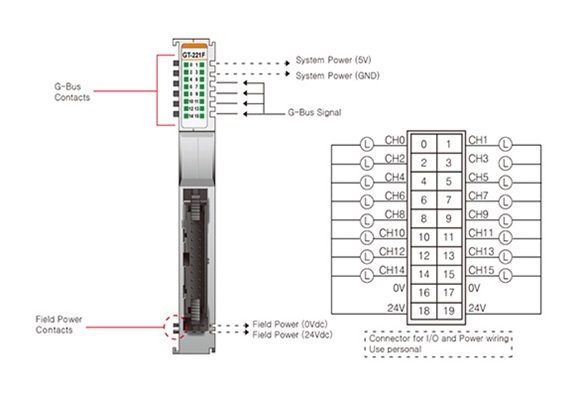

GT-221F
16 digital outputs
24 VDC / 0.3 A
Transistor SINK
20-pin connector (cable not included)
Con20-Open-Cab 5m can be used in combination (part.no. 313296)

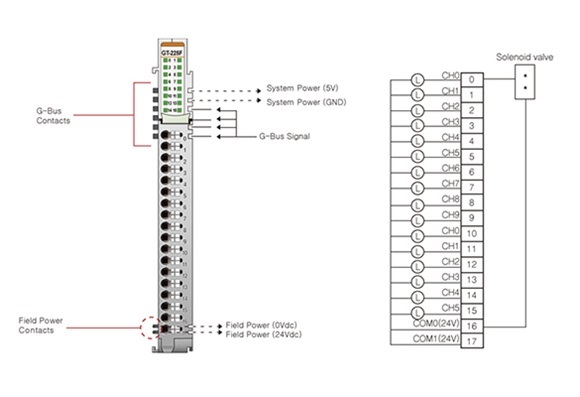

GT-225F
16 digital outputs
24 VDC / 0.3 A
Transistor SINK
Short circuit protection
Over current limit & Thermal shutdown
18pt removable terminal block

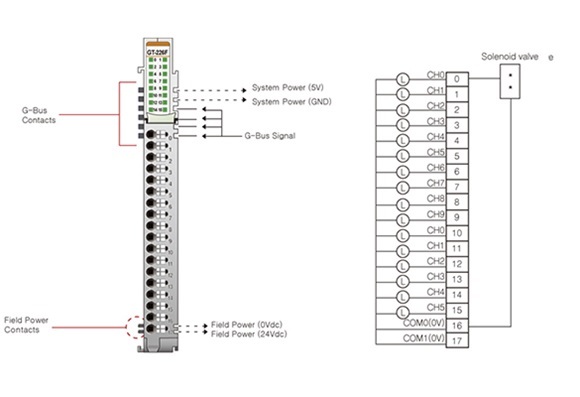

GT-226F
16 digital outputs
24 VDC / 0.3 A
Transistor SOURCE
Short circuit protection
Over current limit & Thermal shutdown
18pt removable terminal block

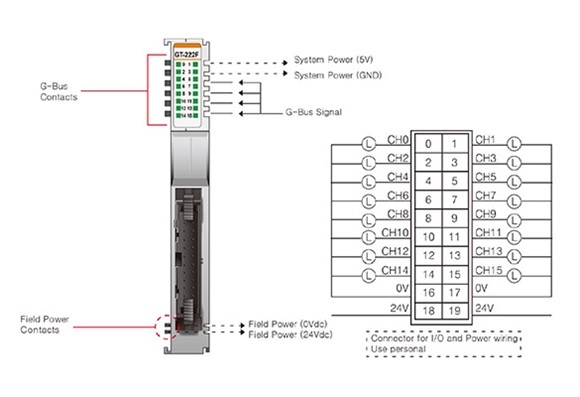

GT-222F
16 digital outputs
24 VDC / 0.3 A
Transistor SOURCE
Short circuit protection
Over current limit & Thermal shutdown
20-pin connector (cable not included)
Con20-Open-Cab 5m can be used in combination (part.no. 313296)

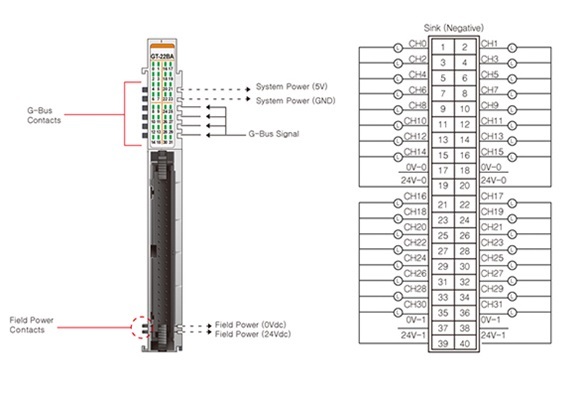

GT-22BA
32 digital outputs
24 VDC / 0.3 A
Transistor SINK
40-pin connector (cable not included)
