M-Series Analog Input Modules

Available with 8 or 16 channels, 12 or 16 Bits resolution depending on input module and signal type.

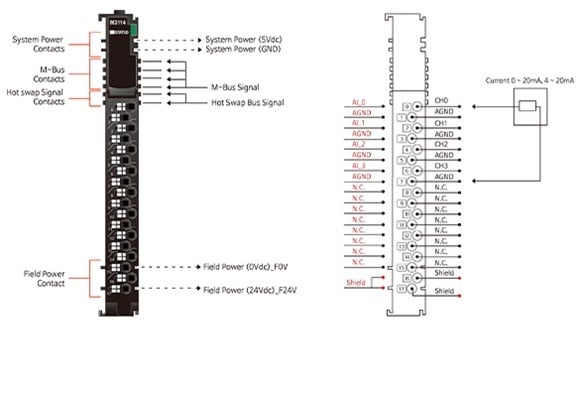

M3114

4 analog inputs

• 0~20 / 4~20 mA
• 12 bit resolution
• Single ended, non-isolaed between channels
• Hotswap
• 18pt removable terminal block (RTB18C)

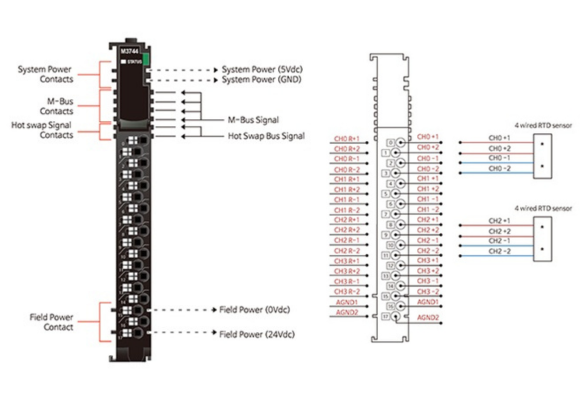

M3744

4 analog inputs

• RTD / Resistance input
• PT100 / PT1000 / Ni1000LG / etc,
• Data Format: 16 bit resolution
• Hotswap
• 18pt removable terminal block (RTB18C)

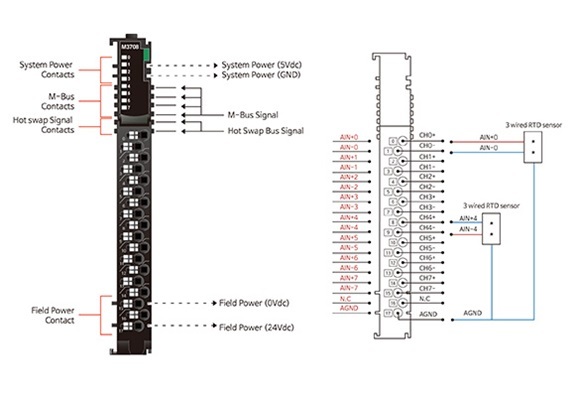

M3708

8 analog inputs

• RTD / Resistance input
• PT100 / PT1000 / Ni1000LG / etc,
• Data Format: 16 bit resolution
• Hotswap
• 18pt removable terminal block (RTB18C)

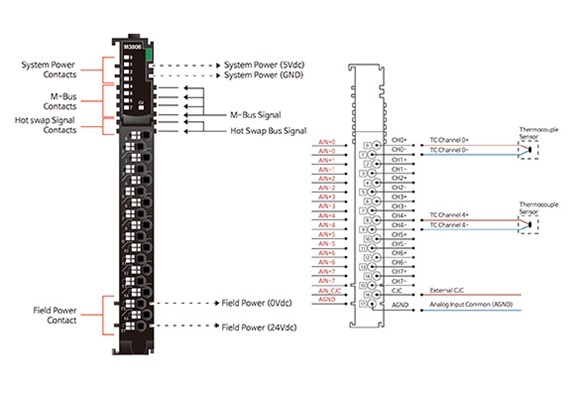

M3808

8 analog inputs

• Thermocouple K, J, T, B, etc.
• 16bit resolution
• Hotswap
• 18pt removable terminal block (RTB18C)
•

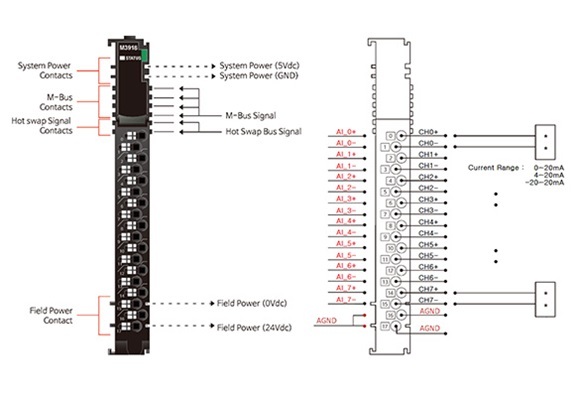

M3918

8 analog inputs

• 0~20/4~20/-20~20mA
• 12bit resolution
• Differential (non-isolated between channels)
• Hotswap
• 18pt removable terminal block (RTB18C)

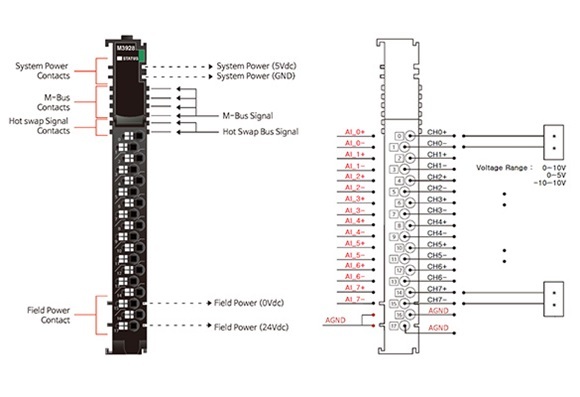

M3928

8 analog inputs

• 0~10/0~5/-10~10/-5~5VDC
• 12bit resolution
• Differential (non-isolated between channels)
• Hotswap
• 18pt removable terminal block (RTB18C)

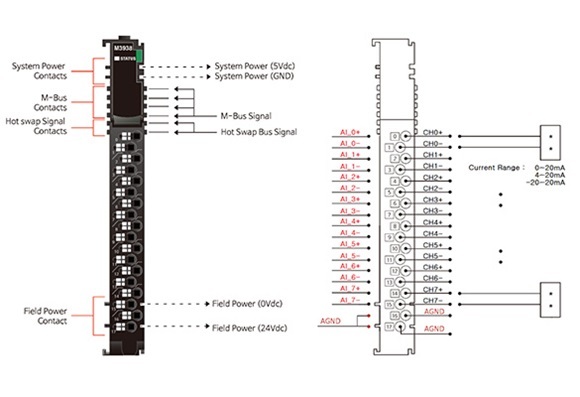

M3938

8 analog inputs

• 0~20/4~20/-20~20mA
• 16bit resolution
• Differential (non-isolated between channels)
• Hotswap
• 18pt removable terminal block (RTB18C)

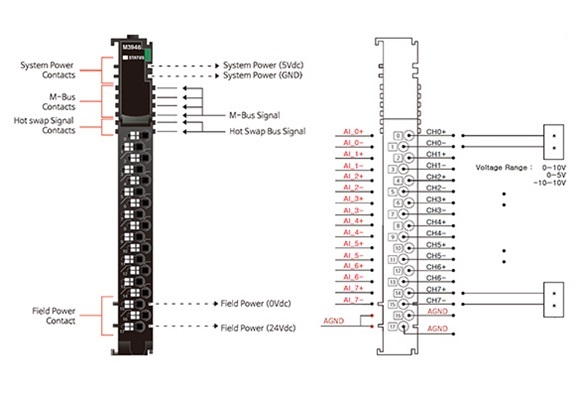

M3948

8 analog inputs

• 0~10/0~5/-10~10/-5~5VDC
• 16bit resolution
• Differential (non-isolated between channels)
• Hotswap
• 18pt removable terminal block (RTB18C)

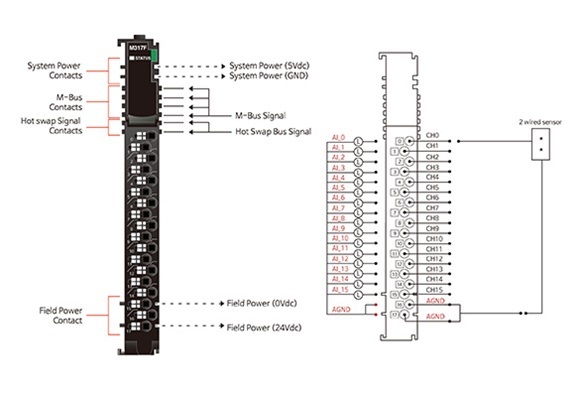

M317F

16 Analog inputs

• 0~20/4~20mA
• 12bit resolution
• Hotswap
• 18pt removable terminal block (RTB18C)

M319F

16 Analog inputs

• 0~20/4~20mA
• 16bit resolution
• Hotswap
• 18pt removable terminal block (RTB18C)

M347F

16 analog inputs

• 0~10/0~5/1~5VDC
• 12bit resolution
• Hotswap
• 18pt removable terminal block (RTB18C)
•

M349F

16 analog input

• 0~10/0~5/1~5VDC
• 16bit resolution
• Hotswap
• 18pt removable terminal block (RTB18C)
