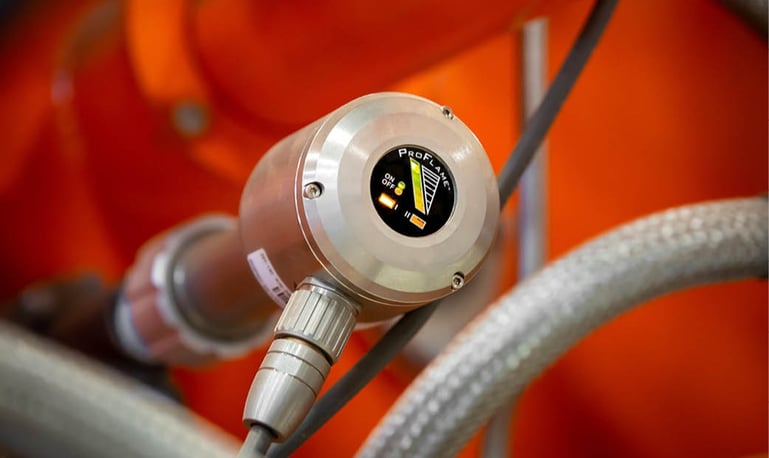

TL;DR: Zeeco ProFlame is the ideal replacement for legacy flame scanners, providing SIL-rated safety, a compact design, easy field tuning, and plug-and-play compatibility—all at approximately half the cost of comparable upgraded scanners.
Replacing legacy flame scanners can be a challenge. Engineers and maintenance teams managing boilers, HRSGs, reformers, and sulfur recovery units (SRUs) often face limited options: pay a premium for a full upgrade or continue dealing with aging equipment prone to nuisance trips and false flame loss signals. Neither approach addresses the core issue: older scanners weren’t designed to meet the safety, space, and diagnostic demands of modern burner management systems.
Zeeco’s ProFlame solves these challenges by tackling the cost, size, complexity, and compatibility issues that make legacy scanner replacement cumbersome. This post breaks down why ProFlame stands out as the most effective solution for replacing outdated flame scanners.
Why Cost Is a Key Factor for Retrofitting Flame Scanners
Budget constraints are often the biggest hurdle in replacing aging flame scanners, especially when multiple burners require upgrades. ProFlame scanners cost roughly half as much as comparable upgrades, significantly reducing upfront expenses. This lower cost allows facilities to upgrade more burners within the same budget, extending coverage across the plant instead of limiting replacements to the most critical areas.
For teams working under tight capital expenditure cycles, ProFlame offers a cost-effective path to achieving widespread scanner upgrades without compromising quality or safety.
How a Compact Design Simplifies Installation in Tight Spaces
Legacy scanner installations often face space limitations around burner ports, particularly in older boilers, HRSGs, and reformers where decades of equipment additions have created congestion. ProFlame's compact design allows for easier integration into such crowded setups, minimizing installation challenges and reducing the risk of interference with surrounding components.
This feature is especially valuable for applications like SRUs and reformers, where dense piping, insulation, and instrumentation leave little room for bulky hardware. ProFlame eliminates the need for extensive engineering modifications, enabling quicker and more efficient installation.
Simplified Tuning Without Proprietary Software
Replacing legacy scanners often involves the hassle of proprietary software, vendor-specific interfaces, or special hardware for commissioning and tuning. Standard ProFlame models make tuning straightforward, requiring only basic tools like a screwdriver and meter—no proprietary software necessary. This simplifies adjustments and reduces training requirements for technicians.
For more complex applications, the ProFlame+ model offers advanced tuning and diagnostics via a PC-based interface, providing flexibility without overcomplicating standard operations.
Dual Gain Flexibility for Improved Light-Off Sequences
Burner light-off sequences typically require varying sensitivity settings—higher gain for initial ignition and lower gain for stable flame detection. ProFlame’s dual gain feature allows technicians to easily switch between high and low gain settings using two adjustable knobs directly on the device. This eliminates the need for proprietary tuning software, streamlining commissioning and enabling precise alignment with existing PLC logic.
Enhanced Monitoring with Onboard Indicators and 4-20 mA Output
Flame intensity monitoring is essential for burner management systems. ProFlame provides built-in intensity indicators -- built-in lights that show flame intensity at a glance -- allowing technicians to quickly assess flame conditions without external equipment. Additionally, its 4-20 mA analog output enables continuous monitoring, giving operators ongoing insight into firebox conditions rather than a simple flame/no-flame signal. This is particularly valuable for identifying degrading flame quality before it triggers a nuisance trip or a full shutdown.
Plug-and-Play Compatibility for Seamless Replacement
One of ProFlame’s standout features is its plug-and-play compatibility. Zeeco not only supplies the scanner but also offers fittings, lenses, cooling modules, mounting hardware, and accessories tailored to a wide range of legacy installations. This eliminates the need to redesign burner mounts or source custom parts, simplifying procurement and reducing downtime.
Zeeco’s comprehensive retrofit solutions make ProFlame an excellent choice for facilities with aging equipment, where replacement parts for legacy scanners are often difficult to find or obsolete.
ProFlame supports a broad range of fired equipment applications:
- Boilers and HRSGs: Compact and cost-effective, ProFlame integrates seamlessly into flame detection systems using voting logic like 2oo3 or 2oo2. Standard models allow for straightforward tuning without proprietary software.
- Sulfur Recovery Units (SRUs): ProFlame’s SRU-specific models handle challenging conditions like steam injection and mixed-fuel co-firing, replacing the two-scanner workaround (UV for methane and IR for acid gas) often used in these applications.
The ProFlame line includes models for various classifications: the ZPF-110 for Zone 1, ZPF-120 for Zone 2, ZPF-130 for non-hazardous areas, as well as utility-grade ProFlame+ and SRU-specific options.
Why ProFlame is the Best Solution for Legacy Flame Scanner Replacement
A single missed flame signal or nuisance trip can lead to costly shutdowns and safety risks. For teams managing outdated flame scanners, this is an ongoing operational challenge.
Zeeco ProFlame provides an unmatched replacement solution, combining affordability, a compact footprint, hassle-free tuning, dual gain flexibility, advanced monitoring features, SIL-rated safety, and plug-and-play compatibility. Whether upgrading a single burner or retrofitting an entire facility, ProFlame simplifies the process while delivering reliable performance.
